Details
Product imformation：

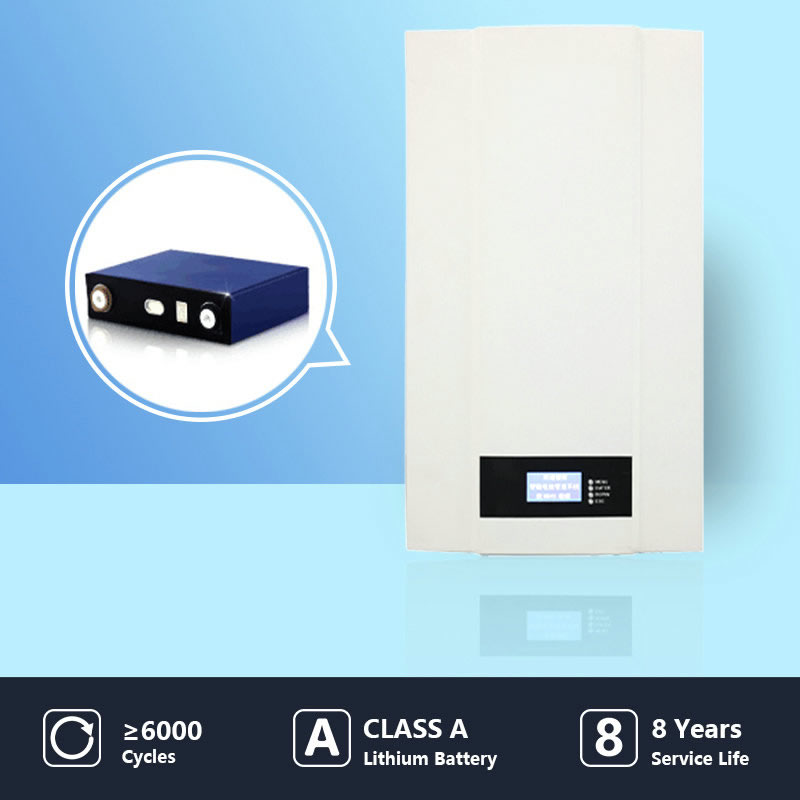

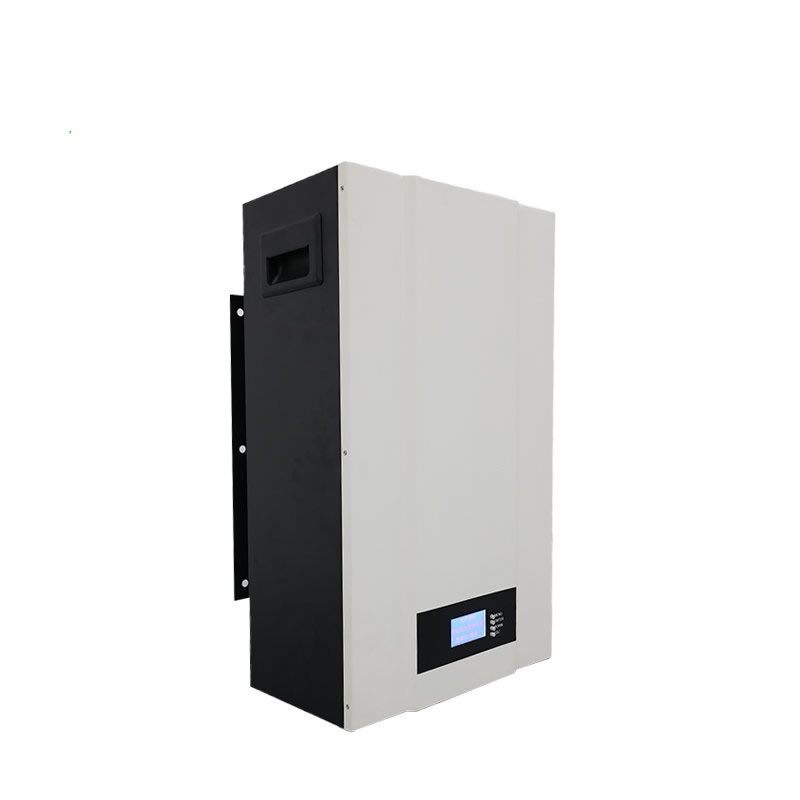

48V 200Ah(10Kwh) Deep Cycle LiFePO4 Battery with BMS 6000 times deep cycle charge and discharge. Iron phosphate-lithium power battery. Higher energy density, smaller volumn for household. Support connected in parallel mode for expansion. Photovoltaic system: This battery pack is designed for household photovoltaic systems.

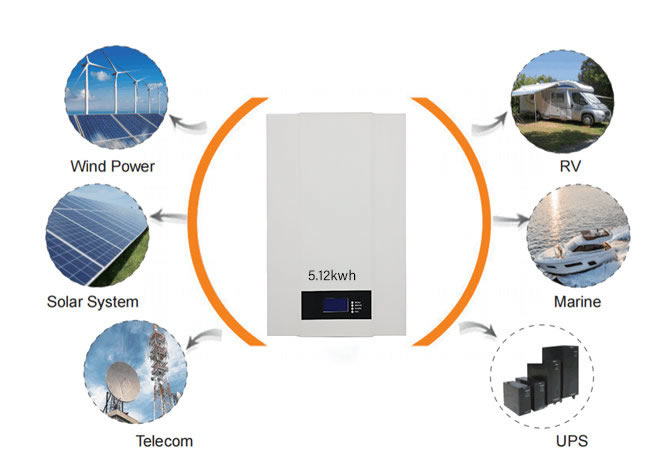

Product Application:
Product Features:
◆High-quality 51.2V LiFePO4 powerwall, safety, deep cycle and long lifespan
◆100Ah and 200Ah powerwall, support up to 15 modules in parallel
◆LCD monitor the energy storage power data and operating status
◆Air cooling to improve the reliability of the product
◆External main switch to reduce product power consumption and improve safety
◆Wall brackets, which can meet the installation and use of different place
◆BMS bulit inside, over-voltage, over-load, over-temperature protection, atc
◆Compatible, can be connected to different types of loads within the voltage range
Product Parameter:
Product Model | 51.2V 100AH | 51.2V 200AH |
Rated capacity | 5120WH | 10240WH |
Nominal Voltage | 51.2V | 51.2V |
Nominal Capacity | 100AH | 200AH |
Cell Type | LIFEPO4 | LIFEPO4 |
Standard Charging Voltage | 58.4V | 58.4V |
Max Charge Current | 100AH | 200AH |
Discharge Cut-off Voltage | 40V | 40V |
Max Discharge Current | 100AH | 200AH |
Parallel Function | 8pcs | 8pcs |
Depth of Discharge | >85% | >85% |
Cycle Life | >6000cycles (0.5C) | >6000cycles (0.5C) |
Charging Temperature Range | 0℃~50℃ | 0℃~50℃ |
Discharging Temperate Range | -20℃~60℃ | -20℃~60℃ |
Color | (White and Black) | (White and Black) |
Dimension | L630*W400*H217.5(MM) | L685*W400*H287(MM) |
Weight | Around 45KG | Around 86KG |
Installation Method | Wall Mounted | Wall Mounted |
Communication Interface | CAN, RS485 | CAN, RS485 |
Warranty | 5 years | 5 years |
Package | Wooden Case | Wooden Case |
Product Size:

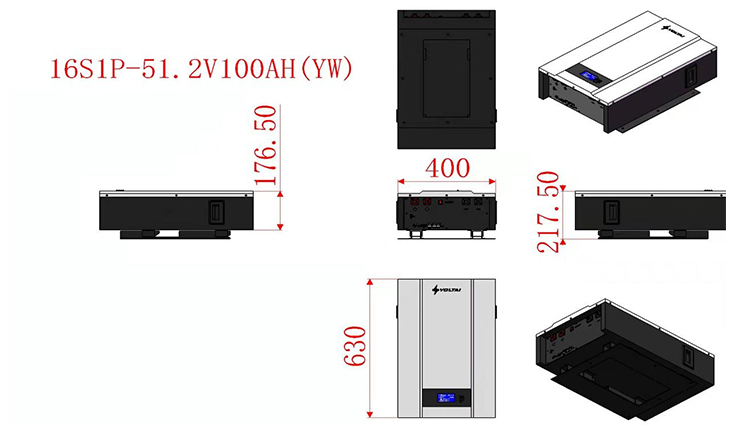

51.2V 100AH—-General View

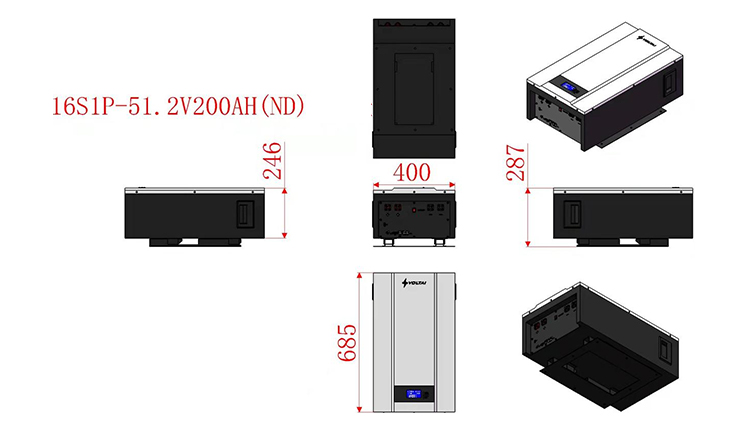

51.2V 200AH—General View

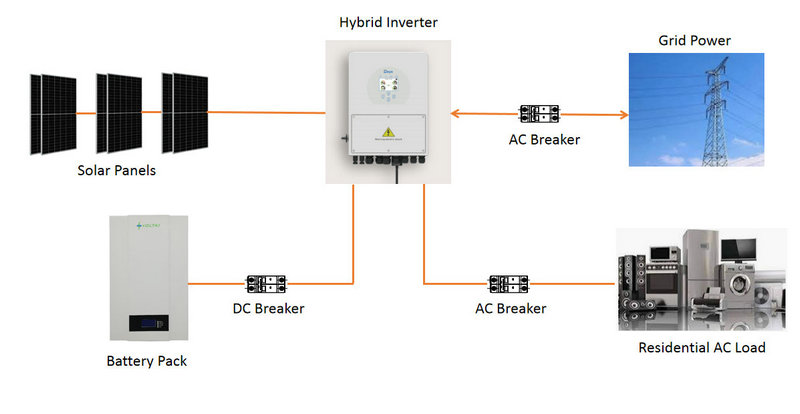

Solar system Connection:

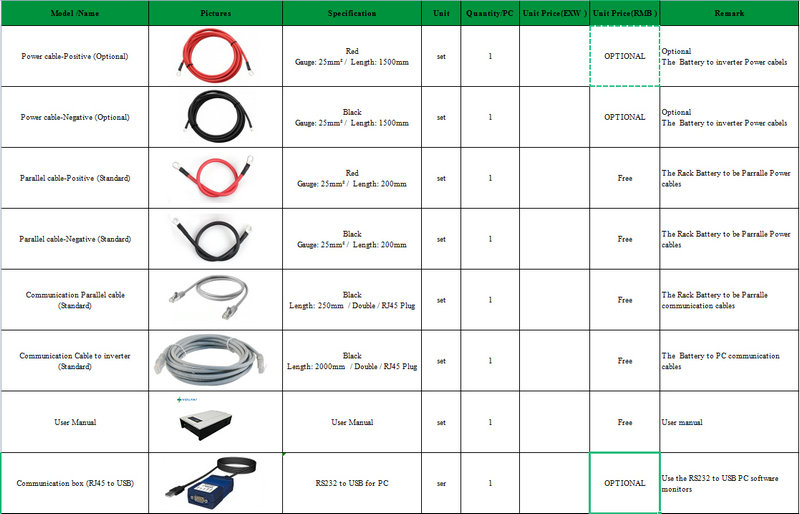

Accessories Details
All the related accessories are available. We can provide all you need.
Package Details:
