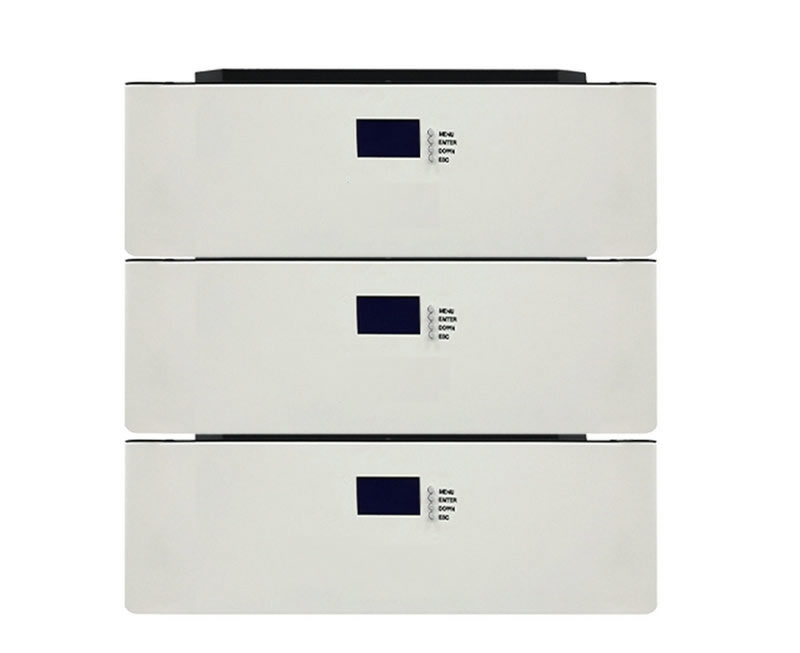

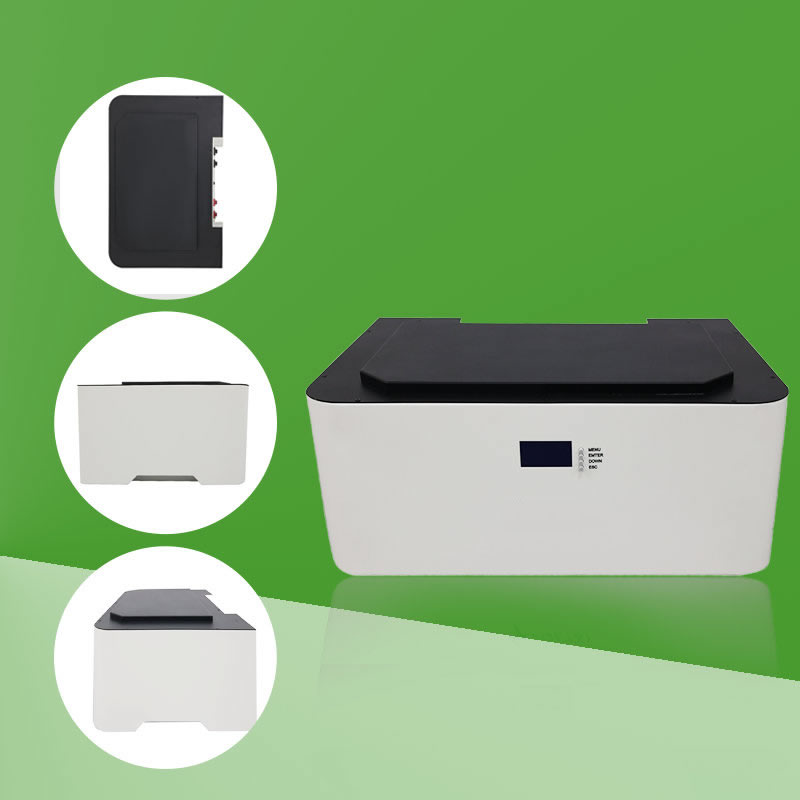

48V 100ah Stackable Vertical LiFePO4 Battery with 5 years warranty
48V 200Ah(10Kwh) Deep Cycle LiFePO4 Battery with BMS 6000 times deep cycle charge and discharge. Iron phosphate-lithium power battery. Higher energy density, smaller volumn for household. Support connected in parallel mode for expansion. Photovoltaic system: This battery pack is designed for household photovoltaic systems.
Product Information：
Voltai’ Lifepo4 battery pack is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS. BMS with improted chips and MOS,with balancing function and dual protection, has a wide range of performance and application advantages compared with conventional battery.

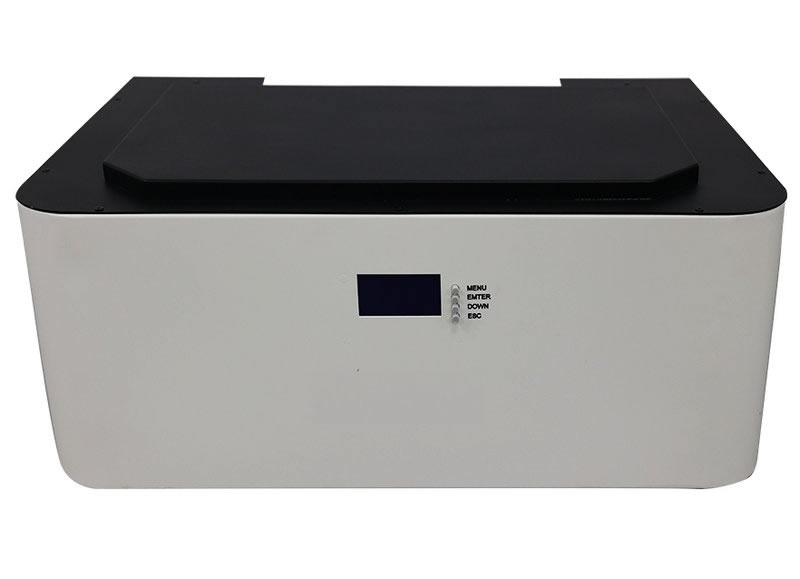

White and Black matte coler, Brand new unique design, various size vaild, easy installation, panel customization service, support for parallel expansion for large capacity applications. Customize BMS with various protection and communication functions ensures the reliable battery performance and remote real-time monitoring of battery data.
Application:

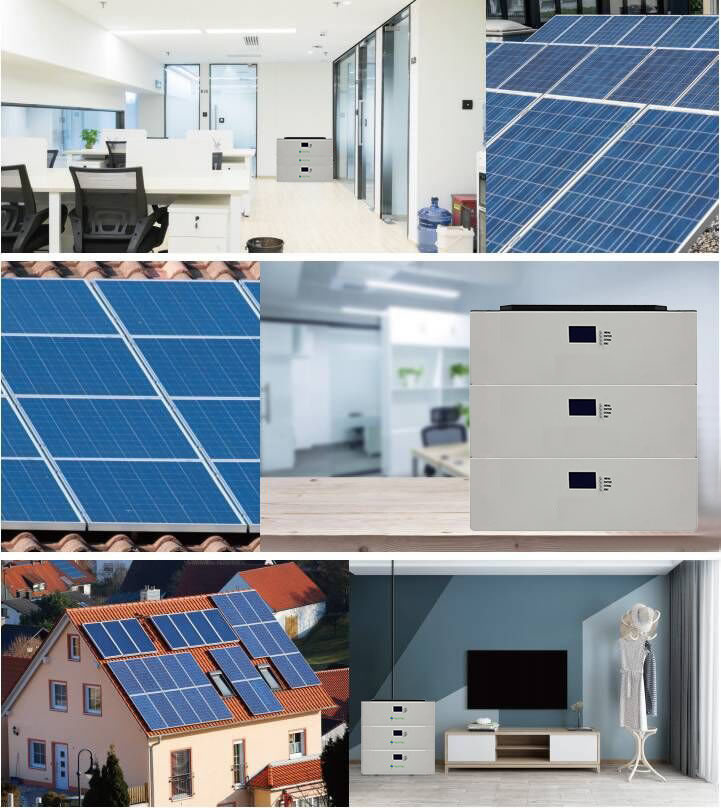

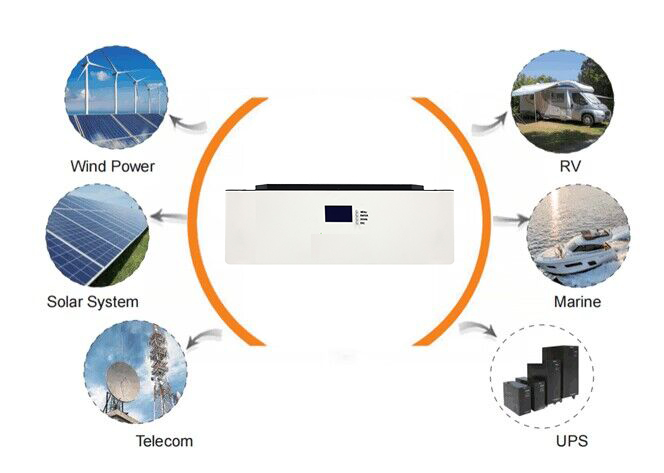

Lithium battery packs are widely used in residential Solar energy Storage system area. Especially for the area where the city power charge is high or the places in a shortage of Electricity. It can also be used for the Telecommunication and UPS system in case of data losing when power off. What’s more? For Camping RV and Marine which is away from the city electricity, it can also been used as a back up system to ensure good holiday experience.
Parameter:
Product Model | 51.2V 100AH | 51.2V 200AH |
Rated capacity | 5120WH | 10240WH |
Nominal Voltage | 51.2V | 51.2V |
Nominal Capacity | 100AH | 200AH |
Cell Type | LIFEPO4 | LIFEPO4 |
Standard Charging Voltage | 58.4V | 58.4V |
Max Charge Current | 100AH | 200AH |
Discharge Cut-off Voltage | 40V | 40V |
Max Discharge Current | 100AH | 200AH |
Parallel Function | 8pcs | 8pcs |
Depth of Discharge | >85% | >85% |
Cycle Life | >6000cycles (0.5C) | >6000cycles (0.5C) |
Charging Temperature Range | 0℃~50℃ | 0℃~50℃ |
Discharging Temperate Range | -20℃~60℃ | -20℃~60℃ |
Color | (White and Black) | (White and Black) |
Dimension | L630*W400*H217.5(MM) | L685*W400*H287(MM) |
Weight | Around 45KG | Around 86KG |
Installation Method | Wall Mounted | Wall Mounted |
Communication Interface | CAN, RS485 | CAN, RS485 |
Warranty | 5 years | 5 years |
Package | Wooden Case | Wooden Case |
Key Features:
Grade A, Brand new cell, 32pcs

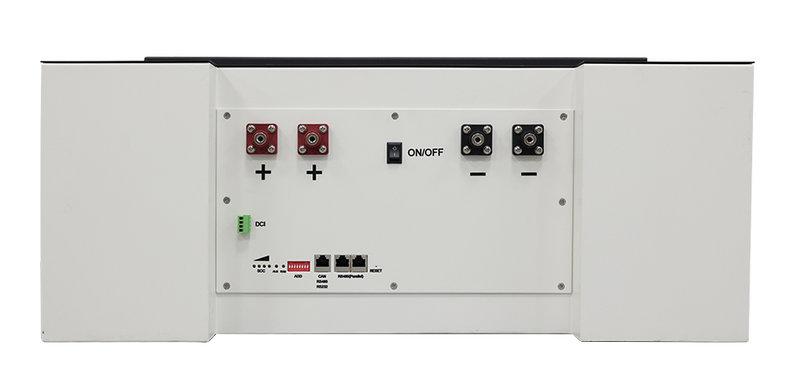

Integrated communication Interface—CAN, RS485
Long life cycle >6000 cycles
High Depth of discharge >85%
5 year warranty
Less weight with Less shipping cost
Wooden case package
Product Size:

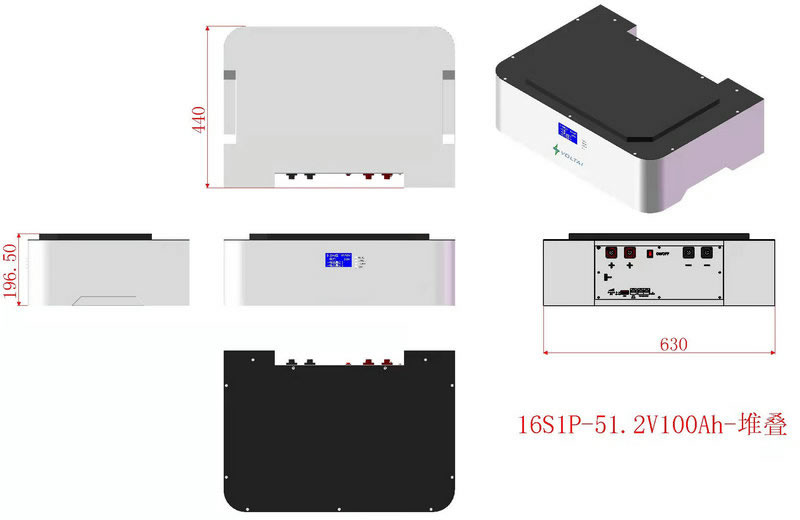

51.2V 100AH—-General View

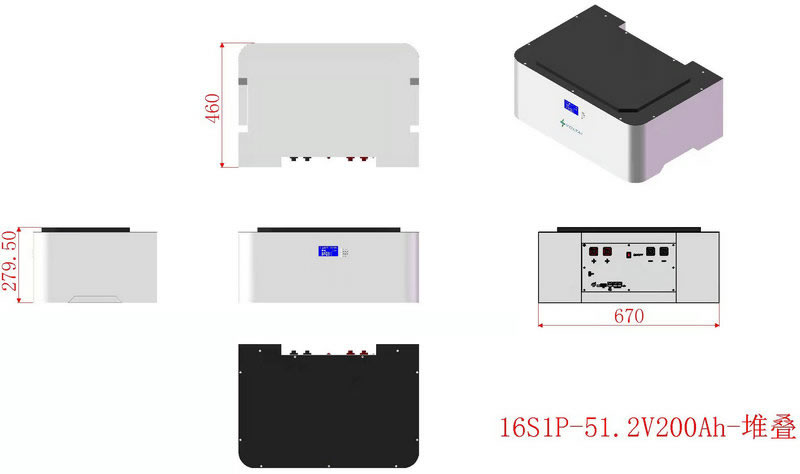

51.2V 200AH—General View
Solar system Connection:
Vertical-Stackable-51
Storage Condition:
When the battery pack to be long-term stored, charge the battery pack to about 60% capacity,store in dry and ventilated place, Charge it every 3 months.
The battery pack and charger should be stored in clean, dry and ventilated place, avoid contacting with corrosive materials and be away from fire and heat.
Product Liability:
We assume no responsibility for the accident of not operating in accordance with the specification.
Specifications, raw materials, production process or production control system is changed , the change will vary depending on the quality and reliability of data written notice to the customer.
Battery Handling Precautions:
Forbid to immerse battery in water or allow it to get wet!
Don’t charge, use and store battery near a heat source such as fire and heater! If
the battery leaks or releases strange odor, pls remove it from place near fire place
immediately. Fully charge the battery before first-time using.
Forbid to reverse the positive and negative pole!
Forbid to throw the battery pack into fire or heat it!
Forbid to short-circuit battery with wire or other metal objects!
Forbid to nail, knock or trample battery!
Forbid to disassemble the battery and battery pack in any way!
Forbid to put the battery into microwave oven or pressure vessel!
If the battery pack gives off odor, gets heat, deformation, discoloration or appears any abnormal phenomenon, stop using it; please remove the battery from electrical appliances and stop using it, when the battery is being used or charged!
Forbid to use battery pack in a very hot environment, such as under direct sunlight or in car on hot day. Otherwise, the battery pack will overheat, which will affect battery performance and shorten battery life!
If the battery leaks and electrolyte leakage enters into the eyes, do not rub, rinse with water immediately and seek immediate medical assistance. If not in time, eyes will be hurt!
Ambient temperature will affect the discharge capacity, if the ambient temperature is beyond the standard environment (25±5),℃ the discharge capacity will drop!
Special Instruction：
During charging, if there is odor and unusual noise, immediately stop charging.
During discharging, if there is odor, unusual noise, immediately stop charging.
If there are above phenomenon, please contact the manufacturer, do not disassemble by yourself.
