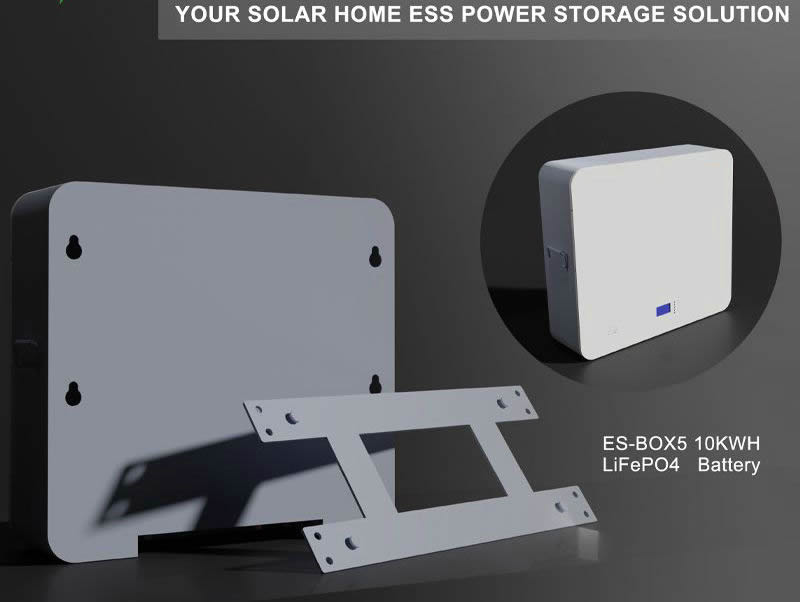

Voltai-BOX5 48v 200ah Wall Mounted 10kwh Lifepo4 Battery Lithium Powerwall Home Battery
The home energy storage Wall-mounted LiFePO4 Battery has the characteristics of small floor space, light weight, convenient installation, less calorie-generating and long cycle life. The company’s products have completed the communication matching with the mainstream inverter manufacturers.
product Information：
1. Lifepo4 battery pack is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.
2.The environmentally friendly lithium ion battery configured with high-performance BMS. BMS with improted chips and MOS,with balancing function and dual protection, has a wide range of performance and application advantages compared with conventional battery.
3. Have low internal resistance and high, flat voltage characteristics during strong current discharge, which ensures a wider application field.
4. All they are grade A cells, Longer cycle life, full inspection before shipment.
Parameters:
Model | ES-BOX5 |
Battery Type | LiFePO4 |
Energy | 10240Wh |
Rated Capacity | 200Ah |
Rated Voltage | 51.2V |
Battery cell | Square Cube Prismatic Pouch 3.2V 200Ah Battery Cell |
Configuration (*S*P) | 16S1P |
Disharge Cut-off Protect Voltage | 40V |
Charge Cut-off Protect Voltage | 58.4V |
Max. Charge Current | 100A |
Max. Discharge Current | 100A |
Communication Port | CAN, RS485 |

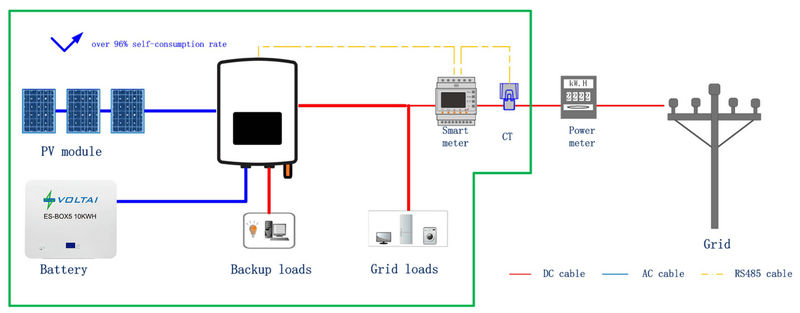

Compitable Inverter Brand | SMA, Growatt, Solax, Solis,DEYE,Sungrow, Sofar, Voltronic, Goodwe, etc. |
Parallel | Max. 8 units in Parallels to get 81kwh. |
Cycle life | 6000-8000 times |

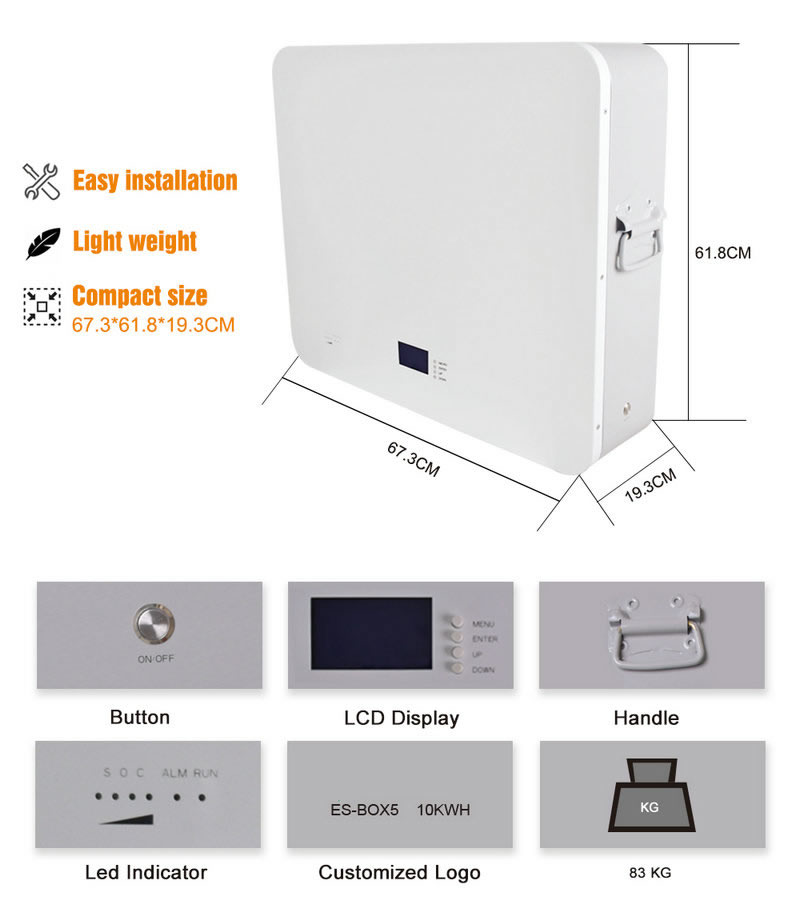

L*W*H (mm) | 673*618*193 |
Net Weight (KG) | 83KG |
Cooling | Natural cooling |
Environment | Indoor |
Mounting options | Wall mount |
Discharge Temperature (℃) | -10℃~+60℃ |
Charge Temperature (℃) | 0℃ ~+45℃ |
Storage Conditions | –20°C to 30°C (–4°F to 86°F) Up to 95% RH, non-condensing State of Energy (SoE): 25% initial |
Maximum Elevation | 3000 m (9843 ft) |
